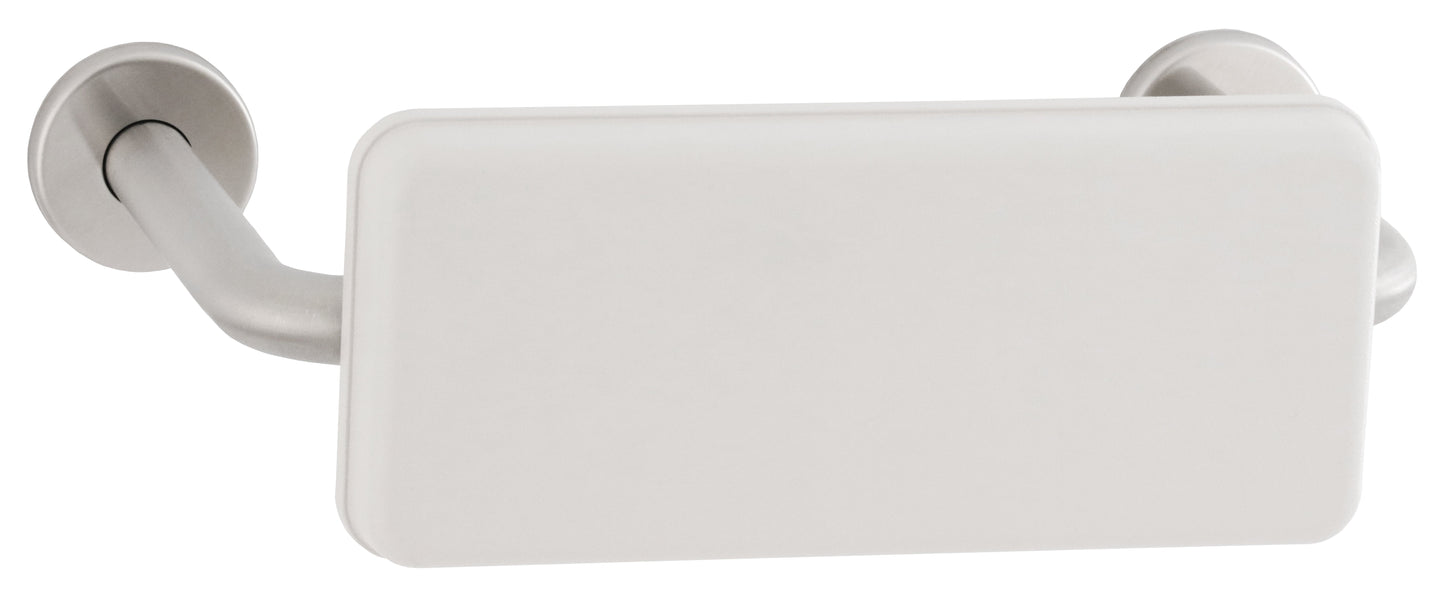

Bobrick B-5892 Grab Bar Rail with Padded Back Rest

Bobrick B-5892 Grab Bar Rail with Padded Back Rest

Regular price $233.40 USD
Regular price Sale price $233.40 USD
Sale Sold out
Shipping calculated at checkout.


  • Category:
  • Bobrick Products,
  • Grab Bars,
  • Toilet Compartment Accessories,
  • Washroom Accessories

The Bobrick B-5892 is a grab bar in stainless steel with a satin finish. The grab bar shall have an 18-gauge 1.2mm wall thickness and 30mm outside diameter. Clearance between the grab bar and wall shall be 210mm. Concealed mounting flanges shall be 3mm stainless steel plate, 50 x 80mm, and equipped with six screw holes for attachment to the wall. Flange covers shall be 0.8mm stainless steel, 85mm diameter, and shall snap over mounting flanges to conceal mounting screws. Ends of the grab bar shall pass through concealed mounting flanges and be heliarc welded to form one structural unit. The grab bar shall be equipped with a 360 x 160 x 40mm white polyurethane integral foam padded backrest.

View full details
  • Product Documents
  • Details


169 KB

Accessory Options & Replacement Parts
